Product introduction

The equipment can be connected to the control system or management system, and obtain the data of the equipment within the system through CAN communication to achieve remote control. By accessing, you can monitor the current system operation status and historical operation data from anywhere in the world, as well as control the on/off status of devices, etc.

• Supports CAN 2.0A/B protocol, connecting industrial equipment (such as PLC, sensors, vehicle systems, etc.);
• Support uploading data to cloud platforms or local servers via protocols such as MQTT/HTTP/WebSocket;
• Rich expansion interfaces, supporting the access of peripheral devices such as fuel consumption sensors, temperature and humidity sensors, load sensors, forward and reverse sensors, and door sensors;
• Single chip design, integrating ADAS, DMS, BSD and other intelligent early warning systems;
• Built-in G-sensor can collect vehicle acceleration information;
• Support overspeed alarm and other functions; AHD/CVBS/VGA 3 kinds of video signal output;

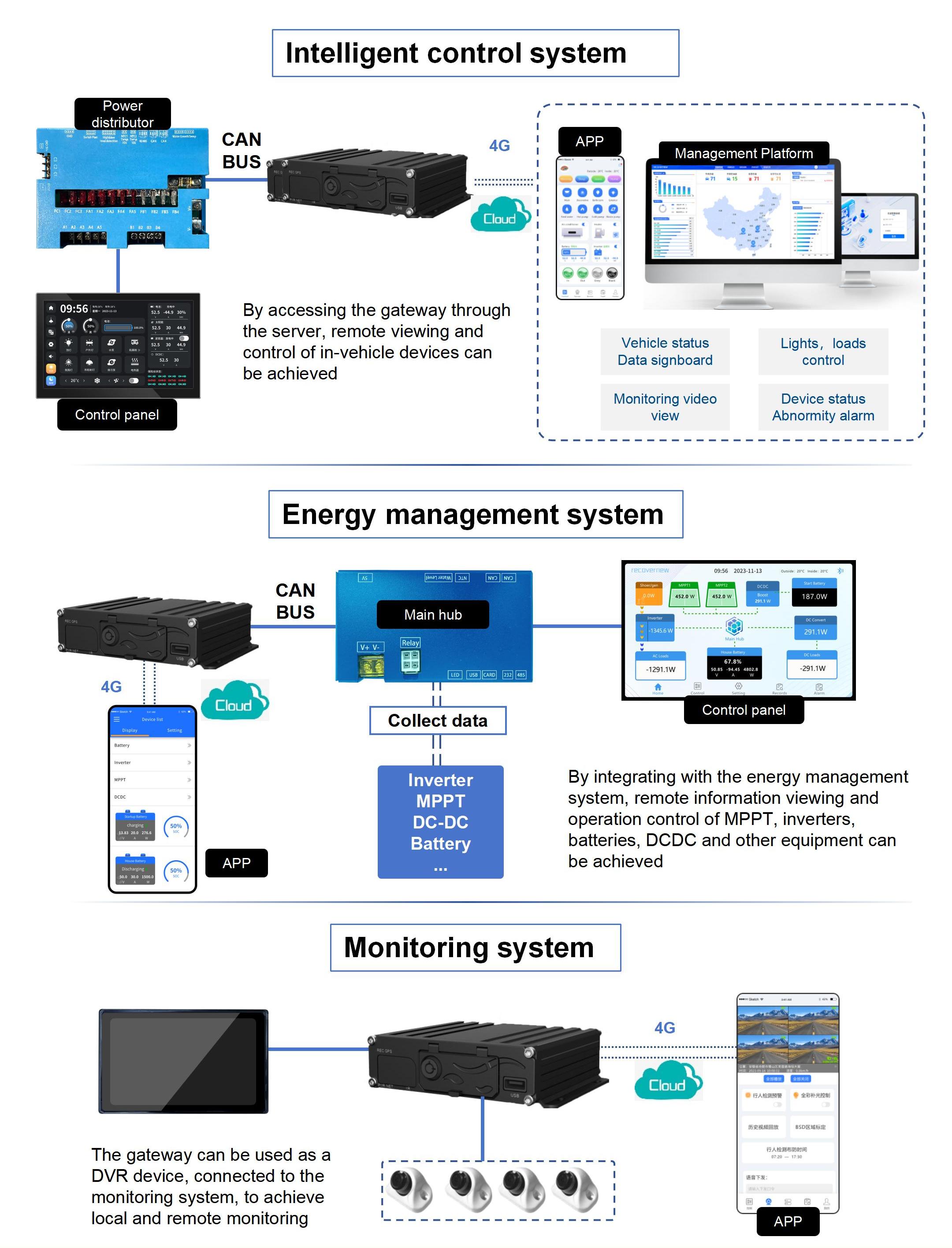

Connection diagram

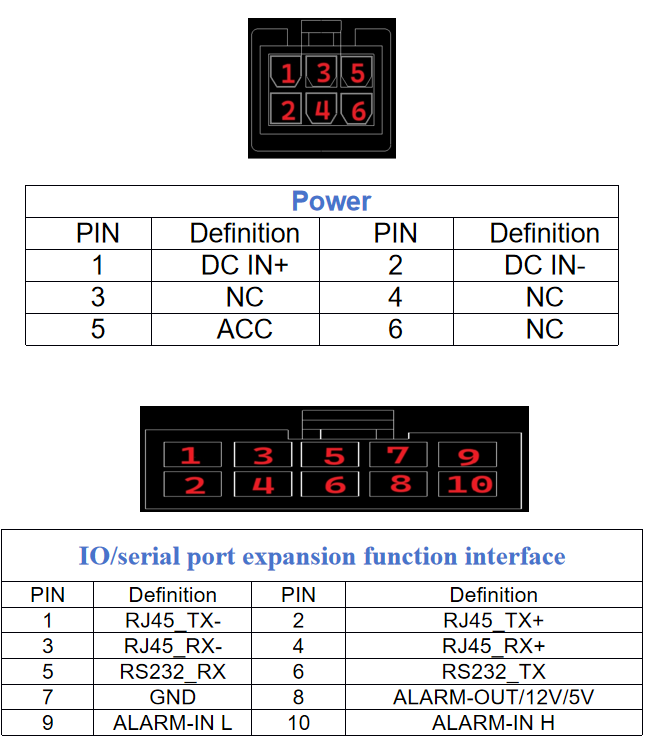

Interface definition
