Product introduction

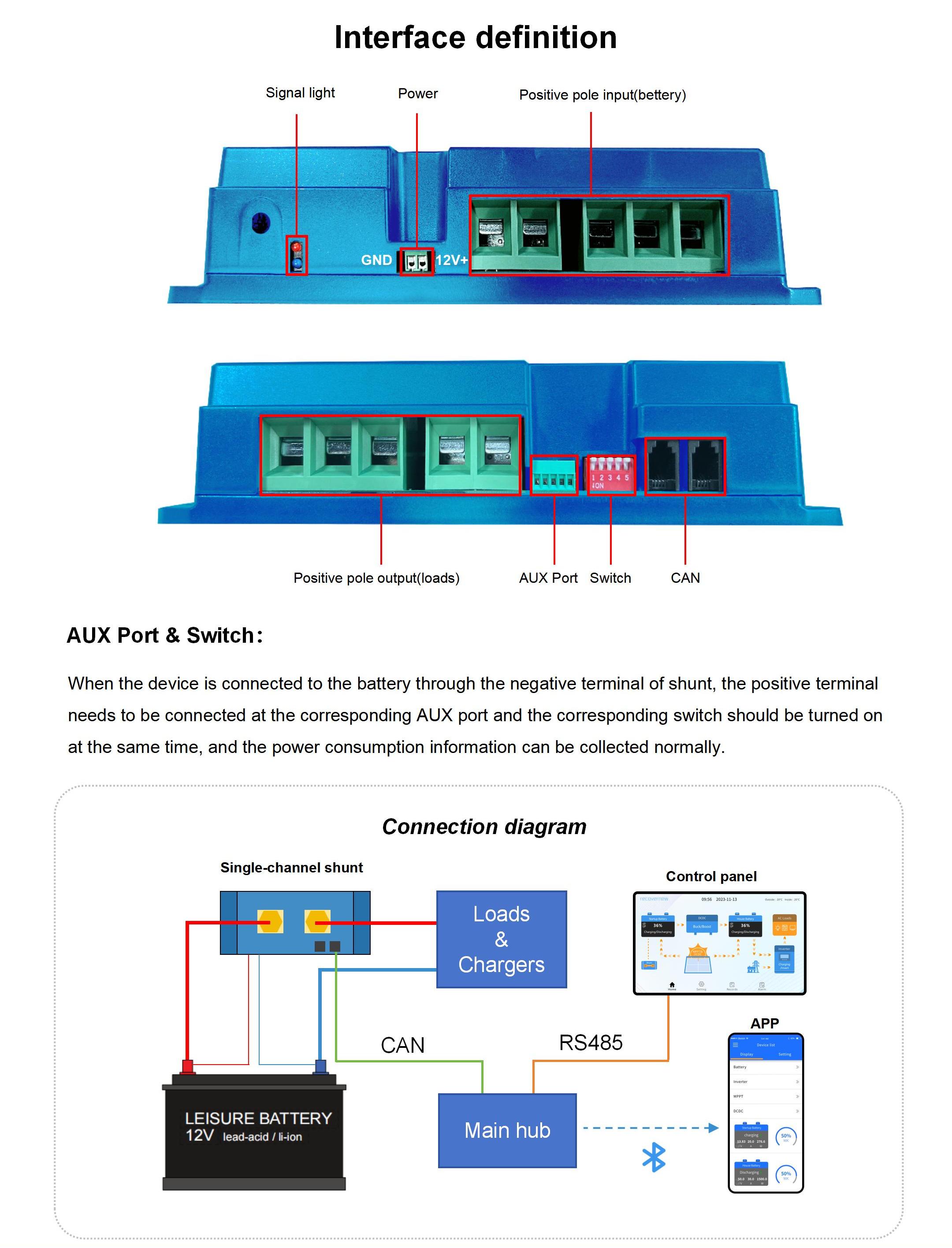

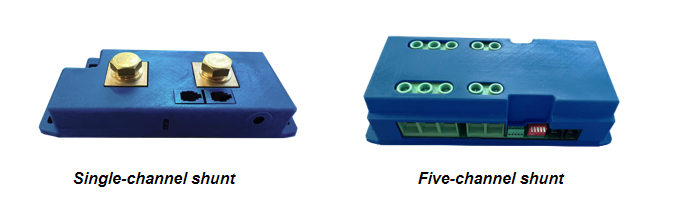

Single-channel shunt is used to connect to protocol-free battery devices, collecting current and voltage information of batteries, historical charge and discharge data, etc. The device is equipped with two CAN interfaces, available in two specifications: 300A and 500A. It can be connected to the main control unit and display relevant data via the screen or Bluetooth to the APP

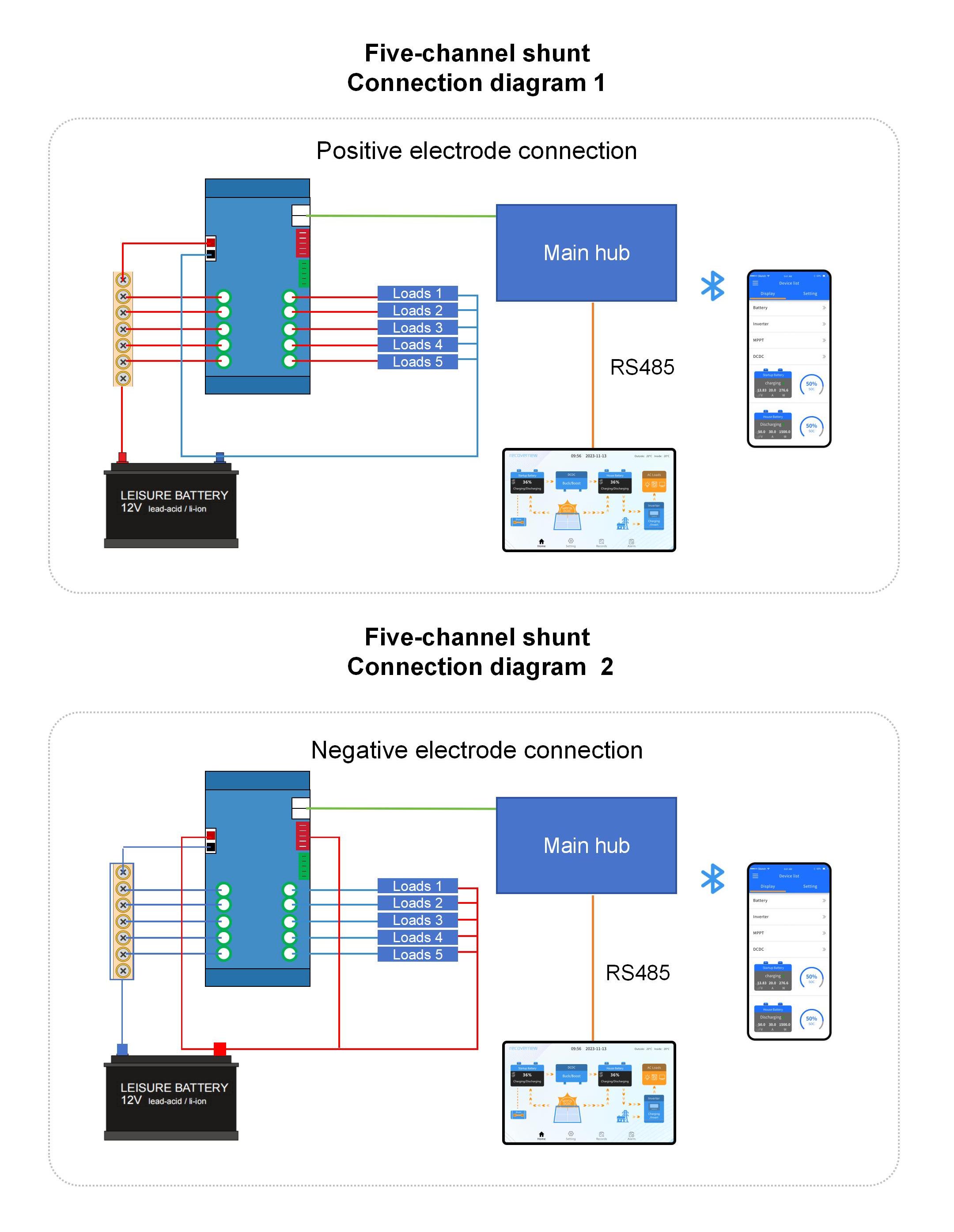

Five shunt channels are used to collect current and voltage information as well as historical power consumption of battery-connected devices, etc. The device is equipped with two CAN interfaces, each with a maximum support of 80A. It can be connected to the main control unit to display relevant data via the screen or Bluetooth to the APP
